Triple Mortise and Tenon Template


Triple Mortise and Tenon Template

20.00

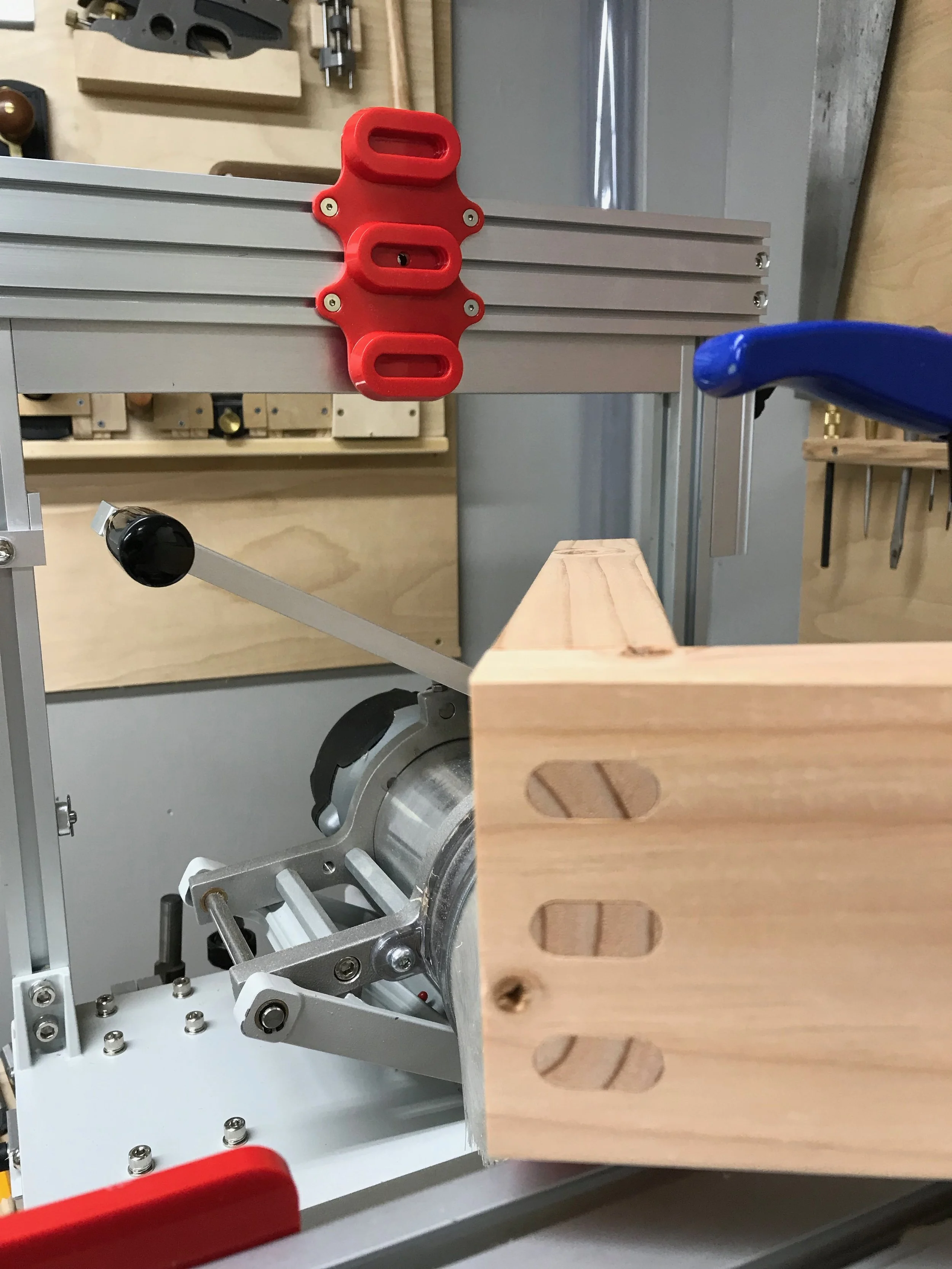

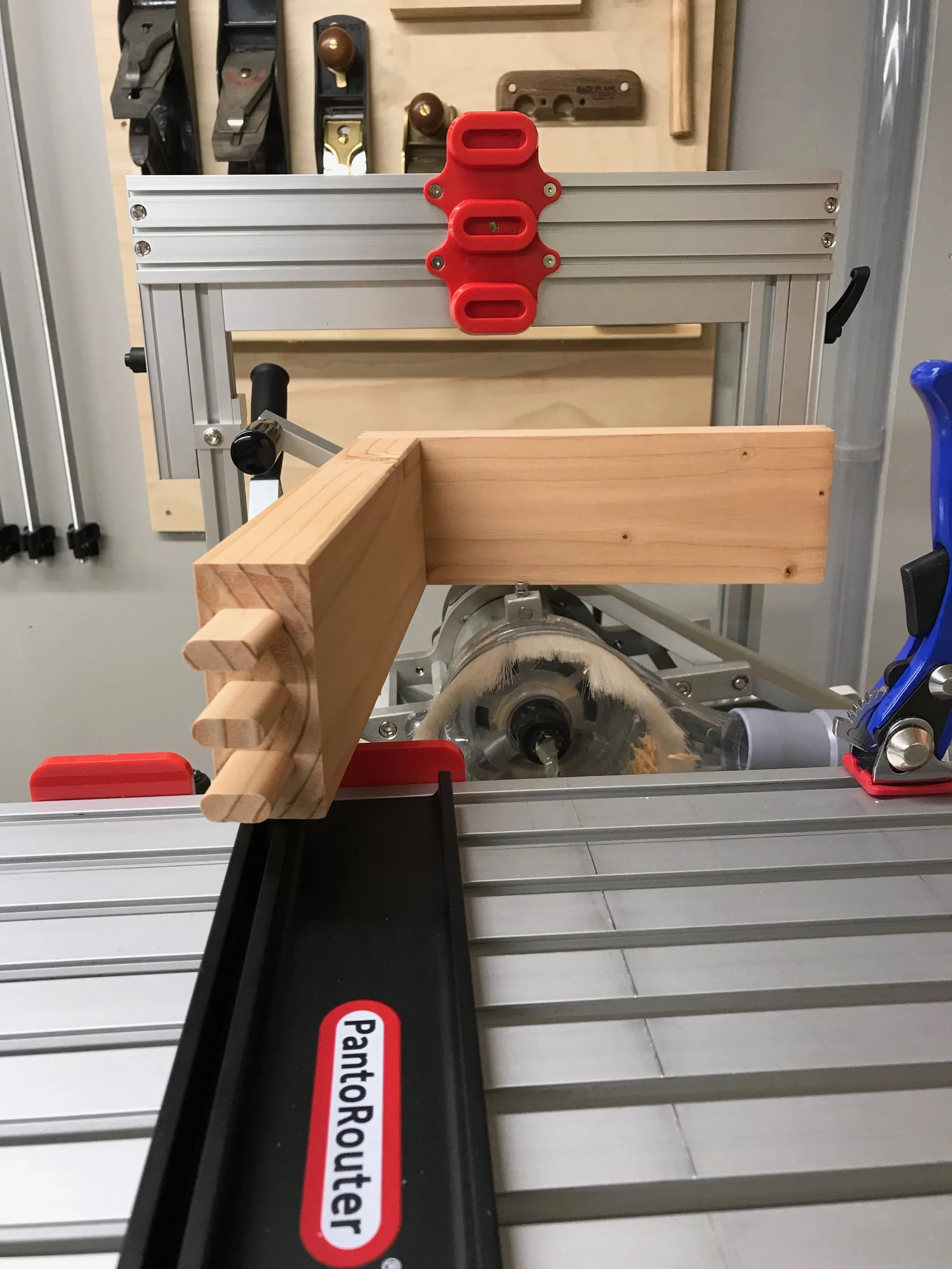

The Triple Mortise and Tenon Template makes three evenly spaced mortises and tenons using the same template and setup. It is designed for 1-inch wide M&T X 1/4”, 3/8” or 1/2”. The main advantage to the Triple is for use when boards intersect at a 90° angle and where your design is to keep both pieces vertical.

The depth of cut is limited by your router bit so if your bit has a shank larger in diameter than the cutting diameter, your tenon can only be as long as the stated cutting length. For instance, a standard 3/8” bit with a 1/2” shank has a cutting length of 1.25”. To cut a deeper mortise and tenon, use the 3/8” X 3/8” shank bit so you can take two cuts to make the mortise and tenon greater than the bit’s 1.25” cutting length. You can find these special bits sold with a reducing collar in the bits section of the online store.
